Metacaulim HP ULTRA
WHY USE
METACAULIM HP ULTRA
ícone Check List Increased DURABILITY for constructions at short, medium and long terms.
ícone Check List Reduction or elimination of pathologies.
ícone Check List Reduction in maintenance of concrete and projects reconstruction.
traço

Studies carried out at Universidade de São Paulo (USP – University of São Paulo), under supervision of Professor PAULO HELENE, PhD, show that the addition of Metacaulim HP increases in several times the life service of concrete structures, and contributes to considerable increase of mechanical strengths*.
Botão Estudo
Newsletter
Follow our work! Register and
receive our newsletter.
Cadastre-se


Metacaulim HP ULTRA

Solução Ideal para Obras de Grande Porte

Metacaulim HP ULTRA is the ideal solution for major projects such as dams, ports and piers, sanitation plants, among others, commonly used in Brazil and worldwide. It consists of pure metakaolin, applied on concrete, cement slurry and mortar.

Main advantages of Metacaulim HP ULTRA

Adição Mineral de Alta Eficiência
ícone Seta Increase in mechanical strengths to compression, tensile and abrasion, at all ages, for up to 40%.
ícone Seta Reduction and control of alkali-aggregate reactions.
ícone Seta Higher resistance to sulfate attack, acids and other chemicals.
ícone Seta Reduction of chloride penetration up to 75%.
ícone Seta Reduction of corrosion in steel rebars.
ícone Seta Decrease in the heat of hydration and thermal cracking.
ícone Seta Decrease in porosity and permeability for up to 90%.
ícone Seta Aesthetic enhancement of the surface: control of efflorescence, cracking and wear.
ícone Seta Enhanced rheology: higher cohesion, up to 90% bleeding reduction; up to 50% rebound reduction in shotcretes; higher flowability and less segregation in self-compacting concretes.
imagem Traço

See More

ícone Aplicações

ícone 1

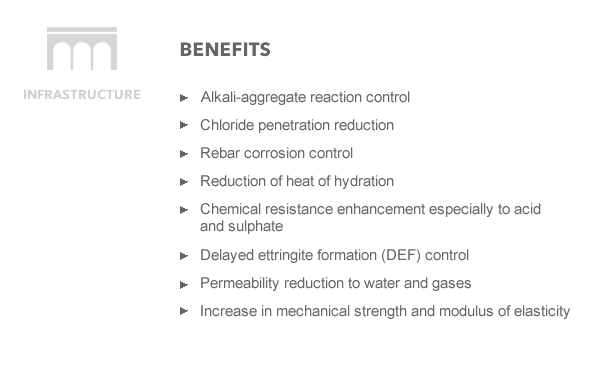

INFRASTRUCTURE WORKS:

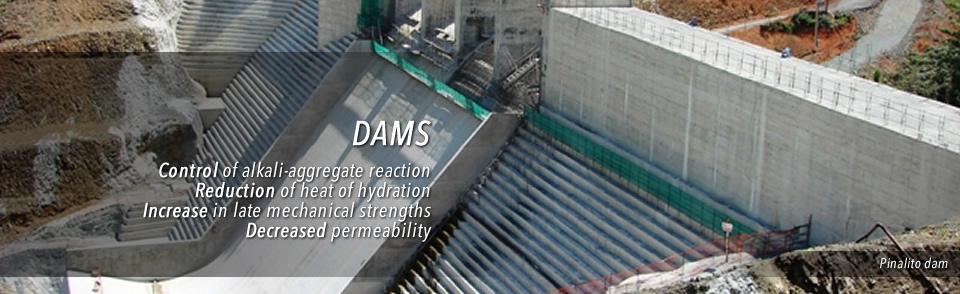

dams, ports, wind farms, railways, bridges and viaducts, water and sewage treatment facilities, pavements.
ícone Infrastructure
ícone 2
COMMERCIAL, INDUSTRIAL AND
RESIDENTIAL BUILDINGS
ícone Buildings
ícone 3

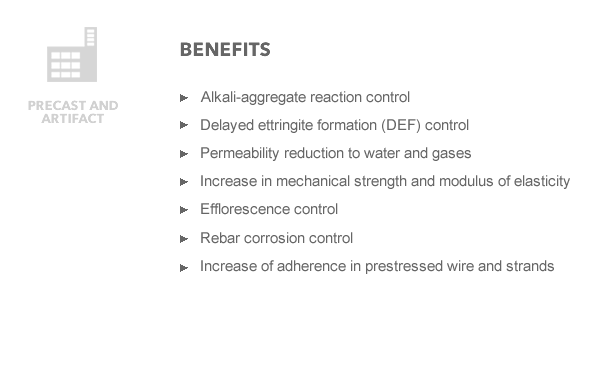

ARTIFACTS, PRECAST AND TILT-UP
ícone Precast and Artifact
ícone 4

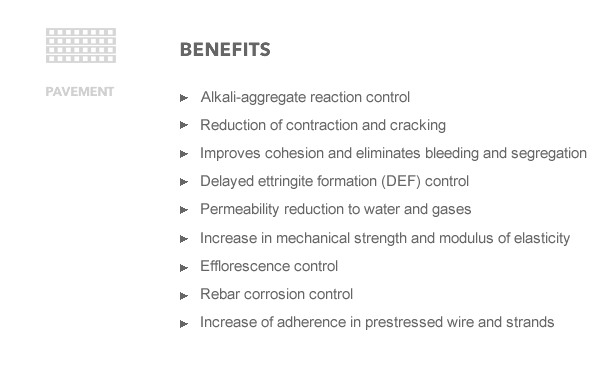

INDUSTRIAL FLOORINGS AND PAVEMENTS
ícone Pavement
ícone 5
MORTARS AND GROUTS
ícone Mortar and Grout
ícone 6
SPECIAL APPLICATIONS:
sanitary wares and porcelain, ceramics, refractories, mineral fillers (for paint, paper and resin), chemicals (aluminum sulfate, aluminum polychloride, among others).
ícone Special Applications
Topo
ícone Benefícios
Physical
Due to the small size of its particles, Metacaulim HP ULTRA fills the voids left by cement paste, reducing its porosity and also contributing to water retention, thus improving hydration of the cement and reducing cracks caused by capillarity and drying during the curing process.
Chemical
Metacaulim HP ULTRA reacts with the free lime (calcium hydroxide) present in cement paste, leading to, over time, composites much more chemically stable and more resistant such as C-S-H (hydrated calcium silicate) and C-A-S-H (hydrated calcium aluminum silicate).
ilustração Metacaulim HP ULTRA

Photos

Electronic microscopies of hardened cement paste, showing reduction of porosity:
Cement paste WITHOUT Metacaulim HP ULTRA
Cement paste WITHOUT Metacaulim HP ULTRA
  Cement paste WITH Metacaulim HP ULTRA
Cement paste WITH Metacaulim HP ULTRA
Topo
ícone Contribuição

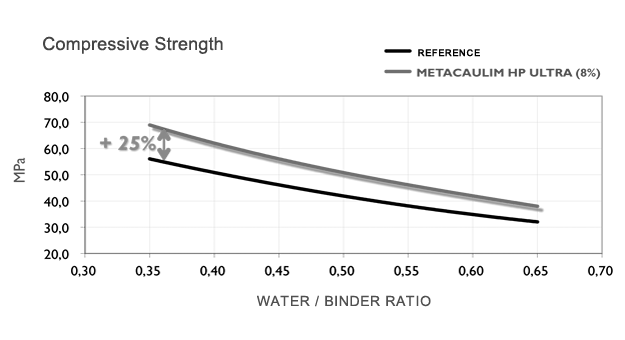

Gráfico Resistência à compressão

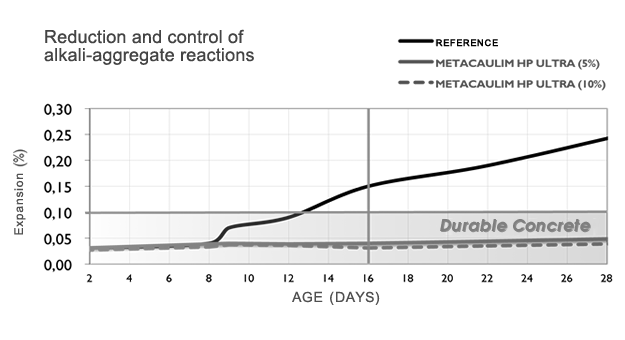

Gráfico Redução e controle das reatividades álcali-agregado

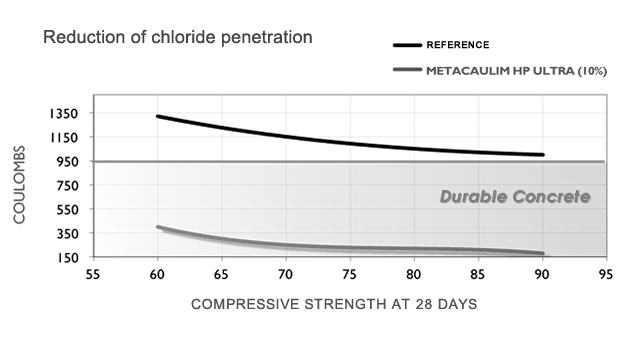

Gráfico Redução da penetração de cloretos

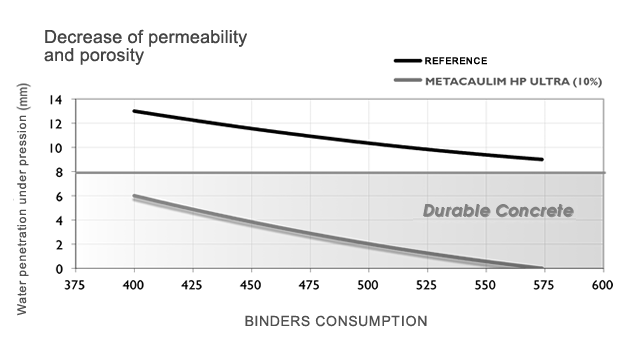

Gráfico Diminuição da porosidade e permeabilidade

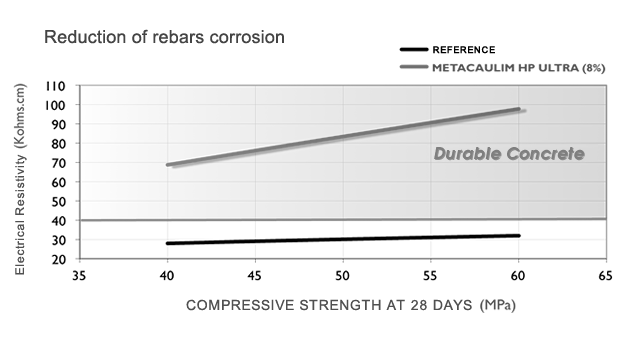

Gráfico Redução da corrosão de armaduras

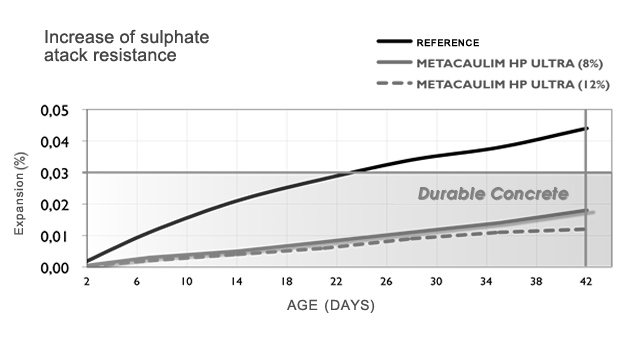

Gráfico Aumento da resistência ao ataque por sulfato

Without Metacaulim HP ULTRA

Increased maintenance and cost; reduced durability and safety of projects and jobsites:

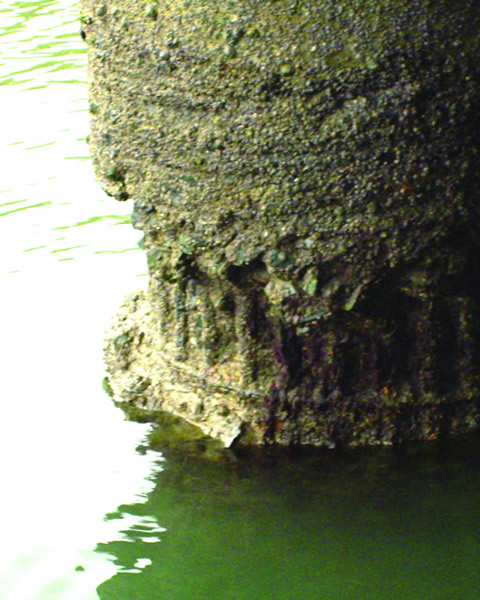

Penetração de Cloretos
Chloride Penetration

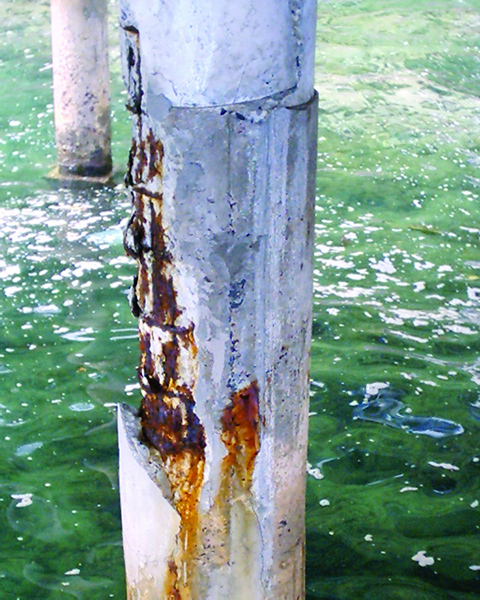

Corrosão de armaduras
Rebar Corrosion

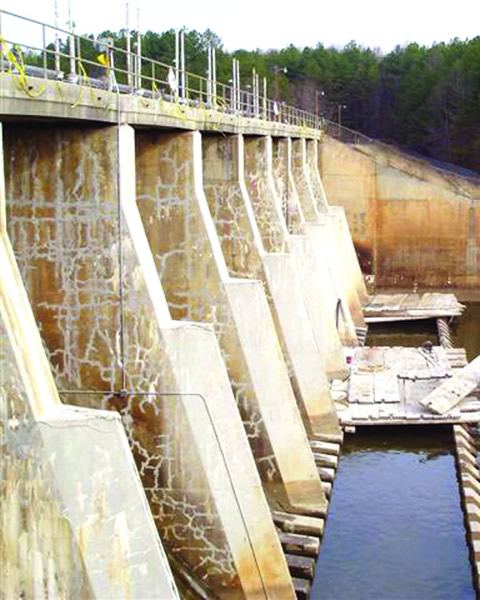

Reatividades álcali-agregado
Alkali-aggregate reaction
ícone Custo Estimado
PATHOLOGY APPLICATIONS BRAZIL WORLD
Rebar Corrosion
Ports, viaducts and bridges, railways, pre-cast structures, buildings and reinforced concrete in general.
US$ 2,6 bi US$ 153 bi
Alkali-aggregate
reactivity
Foundations, dams, channels and galleries, tunnels and concrete in general (whether reinforced or not).
US$ 600 mi US$ 104 bi
Acid and
sulfate attack
Water and sewage treatment facilities, pipes, industrial structures and floors and concrete in general (whether reinforced or not).
US$ 1 bi US$ 85 bi
Physical
deterioration
Pavements, industrial floors, canals and galleries, pipes and concrete subject to superficial wear, fatigue or high intensity mechanical stress (whether reinforced or not).
US$ 2,4 bi US$ 136 bi

TOTAL (US$ per year)
US$ 6,6 bi US$ 478 bi
Data related to 2011
"Considering all other pathologies found in concrete and mortar, maintenance expenditure and project reconstruction are estimated to be at least US$ 60 billion a year, only in Brazil, and over US$ 2 trillion a year worldwide".
Topo
ícone Estudo Comparativo
    WITHOUT
Metacaulim
WITH
Metacaulim HP ULTRA

    Standard Fixed compressive strength, at 28 days Fixed amount of binders

Metacaulim
HP ULTRA (10%)
- 31 38
titulo Quantitativo
Cement type CP V ARI
420 310 382
Natural Washed Sand
743 789 710
Stone 12.5/25mm
1055 1110 1130
Water
174 174 174
Superplasticizer Additive
3,36 2,73 3,36
Factor Water/Binders
0,414 0,510 0,414
Estimated Cost
Market
Cost
5% Reduction in Market Cost - REFERENCE
LIMITS
titulo Resitência à Compressão
1 day (MPa)
31,4 29,4 34,3 -
7 days(MPa)
55,3 57,4 64,8 -
28 days (MPa)
61,5 61,2 73,6 -
182 days (MPa)
63,8 67,9 81,4 -
Modulus of Elasticity
GPa (28 days)
36,3 35,5 38,7 -
titulo Parâmetros de Durabilidade
Alkali-aggregate reaction
expansion % (16 days)
0,26 0,03 0,03 < 0,10%
Sulphate Resistance
expansion % (42 days)
0,06 0,01 0,01 < 0,03%
Chloride Penetration
Coulombs (28 days)
1680 670 460 < 1000 Coulombs
Electrical Resistivity
Kohm.cm (28 days)
25 90 115 > 60
Kohm
Adiabatic Elevation
º Celsius, max. (7 days)
74 63 73 -
Drying Shrinkage
% (28 days)
0,17 0,05 0,07 < 0,10%
Water Penetration
under Pressure, mm (28 days)
14 7 5 < 10 mm
Water Absorption
% (28 days)
5,3 3,2 2,5 < 4,5%
Topo
ícone Ficha Técnicas
  METACAULIM
HP ULTRA

Color
Light bege to off-white


Physical & Chemical Properties
Typical Values
Limit Values(Brazilian
Standard NBR 15.894)
SiO2
57%
44% to 65%
Al2O3
34%
32% to 46%
CaO + MgO
< 0,1%
< 1,5%
SO3
< 0,1%
< 1%
Na2O
< 0,1%
< 0,5%
Alkaline Eq. Na2O2O
< 1,5%
< 1,5%
Fe2O3
2%
-
TiO2
1,5%
-
Humidity
0,5%
< 2%
Loss on Igniton
3%
< 4%
Residue #325
6%
< 10%
Pozzolanic activity index with OPC (7 days)
115%
> 105%
Chapelle Pozzolanic Activity
880mg Ca(OH)2/g
> 750mg Ca(OH)2/g
BET Specific Area
230.000cm²/g
150.000cm²/g
Specific Gravity
2,56kg/dm³
-

Handling Instructions:

Add Metacaulim HP ULTRA directly into the mixture, along with cement. It does not require pre-mixing in water. Use between 5% and 15% cement replacement by weight, according to concrete performance specifications.

Chemical Composition:

Saluminum silicate

Available in:

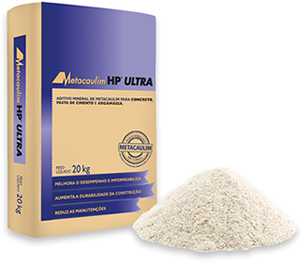

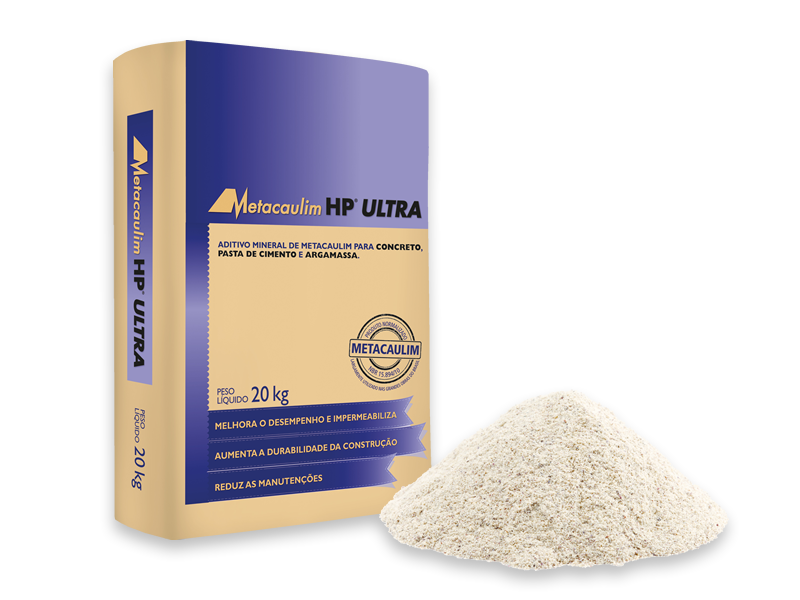

foto Metacaulim HP ULTRA saco de 20kg
20 kg palletized paper bags

foto Metacaulim HP ULTRA Big-Bag de 600 a 800kg
600 to 800kg
super-sacks

foto Metacaulim HP ULTRA Granel de 15 a 25 toneladas
Bulk/silo-truck (for projects located within 3.000 km from São Paulo, Brazil)

Download of the Material Safety Data Sheet:

ícone PDF
Material Safety Data Sheet (MSDS).
- Português: fispq.pdf (73 KB)
